我们可以在 CloudFront Functions 中存储持久性数据。典型的使用案例通常是重定向和重写映射,其中原始请求 URI 被覆盖为另一个。虽然我们的函数可以支持存储持久性数据,但在以下场景中并不理想:

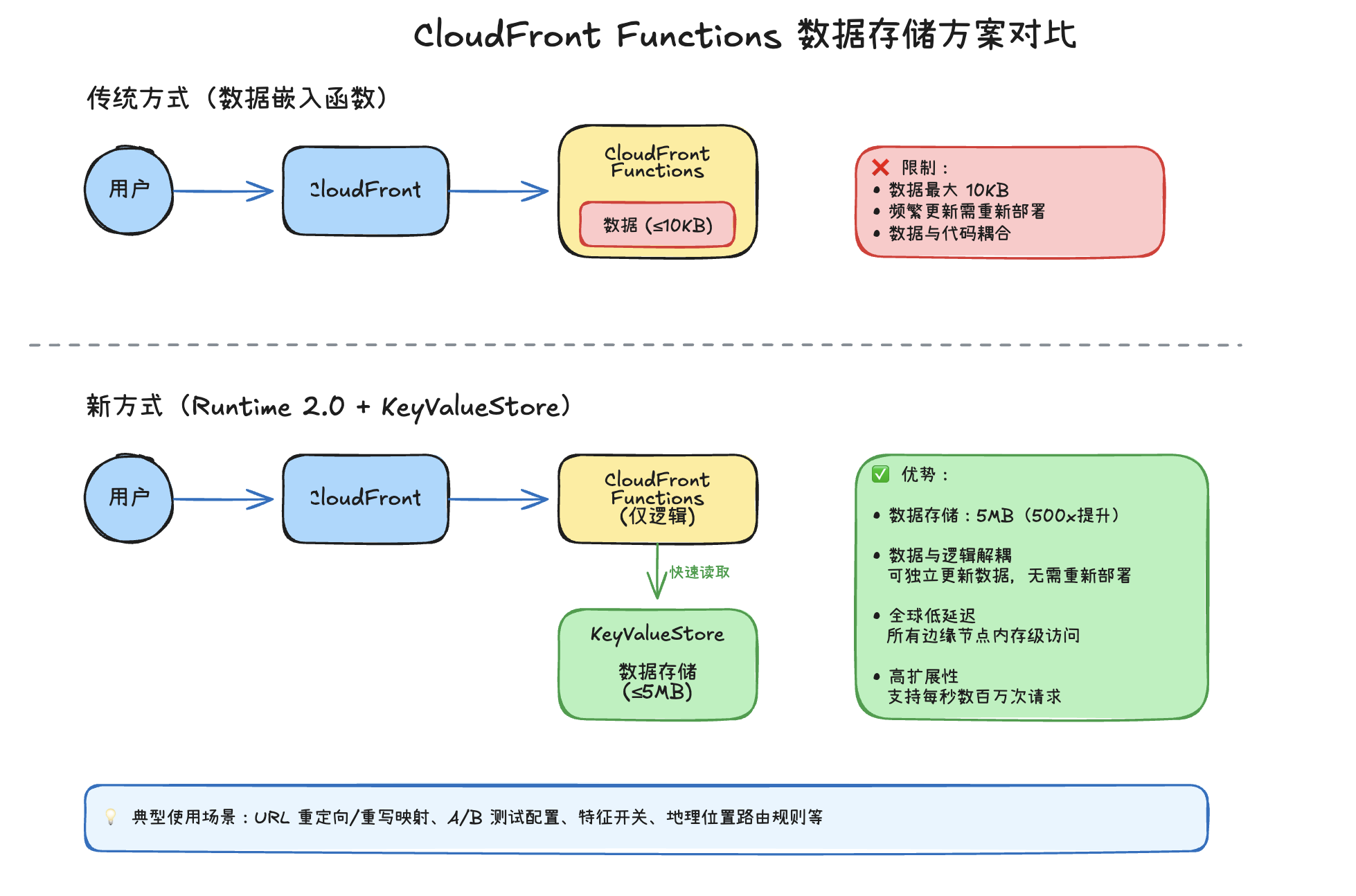

随着 CloudFront Functions JavaScript runtime 2.0 的出现,我们现在可以利用 Amazon CloudFront KeyValueStore ,这是一个全球性的、低延迟的键值数据存储。它通过以下方式解决了上述两点的限制:
它在所有 CloudFront 边缘节点上均可使用,并提供高效的内存键值存储,可从 CloudFront Functions 内部快速读取。这使得 CloudFront KeyValueStore 能够轻松扩展以处理每秒数百万次请求,而无需扩展存储资源。

我们将在上一节的基础上进行扩展,将CloudFront Function扩展为从KeyValueStore中存储的键/值进行重定向。这是一个很好的选择,可以避免将值直接硬编码到CloudFront Function中,因为每次需要更新时都需要修改代码!我们将进行以下行为重定向:
| 键 | 值 |
|---|---|
| /catalog/spices/ | https://aws.amazon.com/cloudfront/ |
| /catalog/tea/ | https://docs.aws.amazon.com/AmazonCloudFront/latest/DeveloperGuide/cloudfront-functions.html |

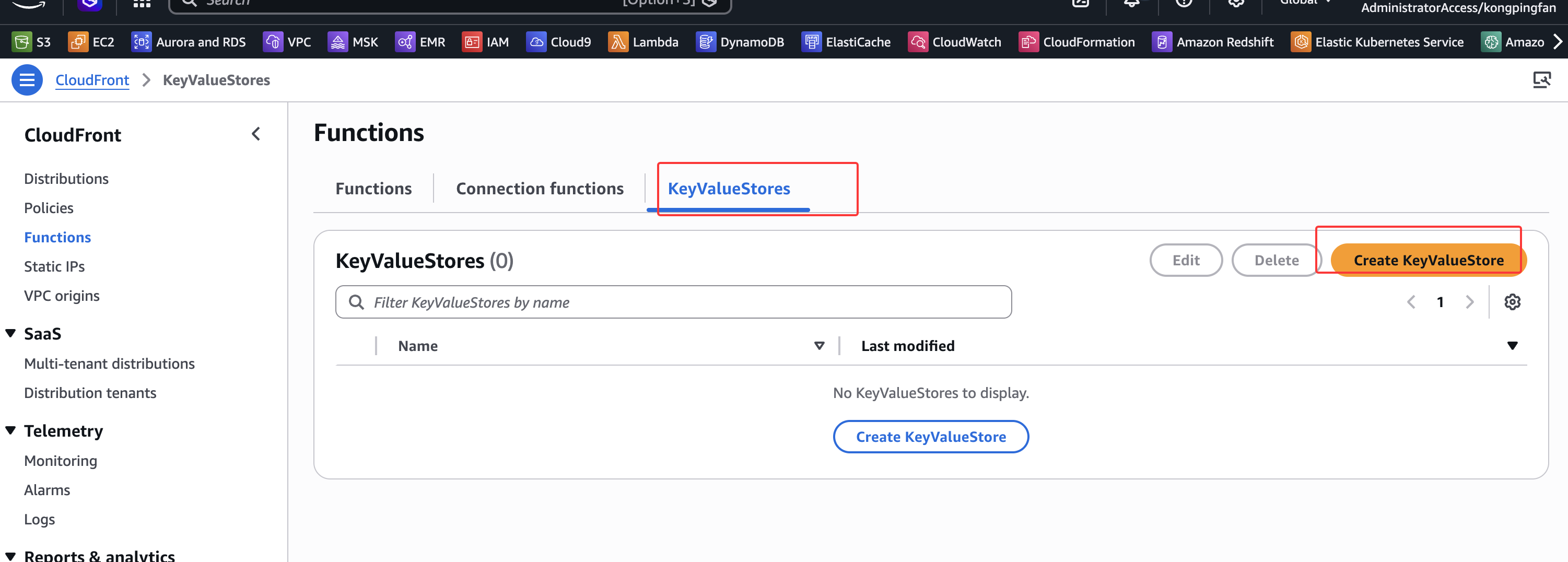

从导航到KeyValueStore
开始,然后点击Create KeyValueStore:

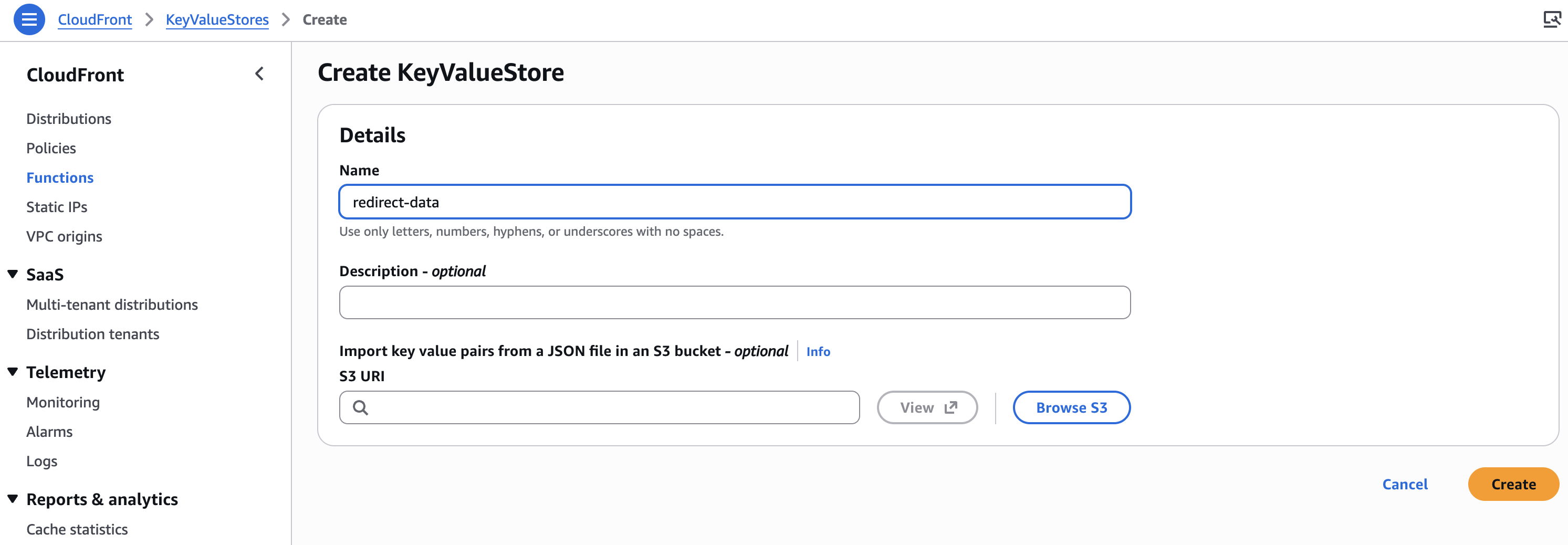

创建KeyValueStore时,有几个不同的配置选项,例如名称、描述和S3 URI:
将KeyValueStore命名为redirect-data。我们不会使用其他选项,但它们允许以下操作:
Description - 我们可以为KeyValueStore设置描述S3 URI - 创建新的KeyValueStore时,我们可以从S3 Bucket预加载数据到KeyValueStore中。请参阅文档
了解更多信息。

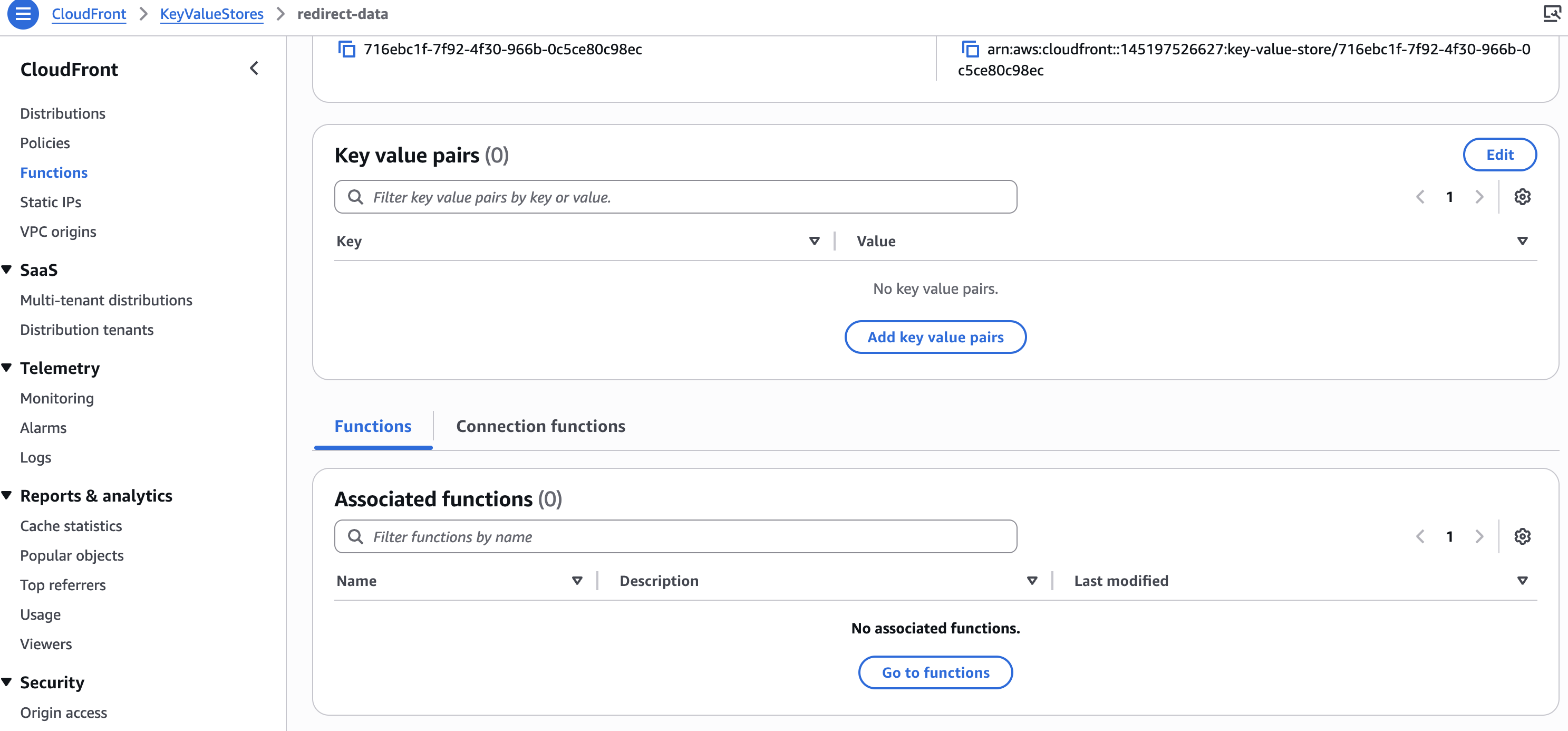

命名KeyValueStore后,按"create"按钮,我们将被重定向到新创建的KeyValueStore。等待它创建完成:

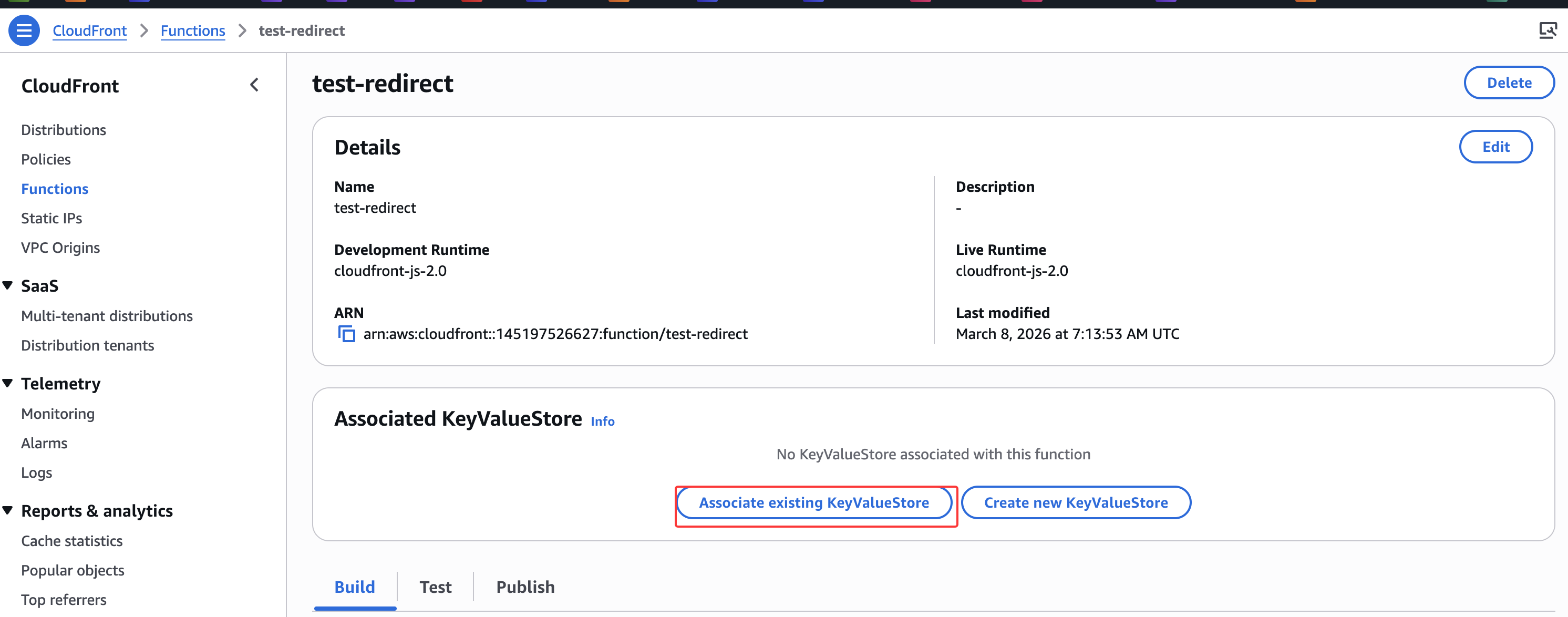

进入上一节创建的Function, CloudFront Functions和KeyValueStore之间需要建立关联:

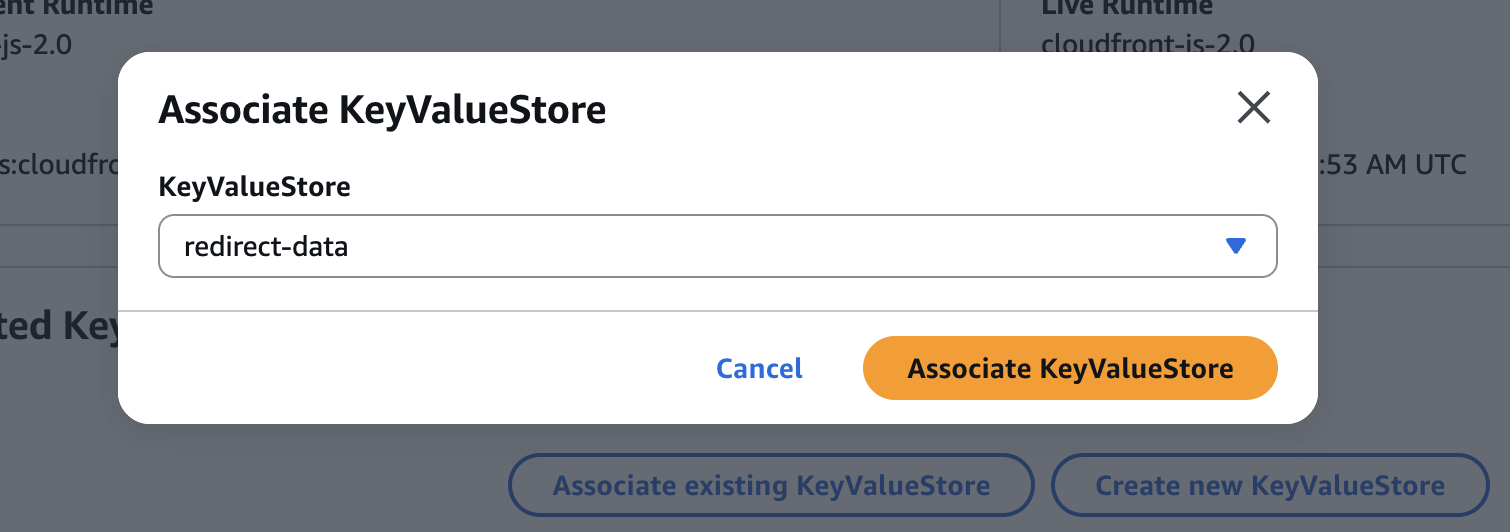

我们将看到一个下拉菜单,确保选择在上一步中创建的KVS名称

以下是我们CloudFront Function的代码要求:
更新Function代码如下:
import cf from 'cloudfront';
// Declare the KeyValueStore handle object
const kvsHandle = cf.kvs();
async function handler(event) {
const request = event.request;
const uri = request.uri;
try {
// Lookup the URI in the KeyValueStore
const redirectUri = await kvsHandle.get(uri);
if (redirectUri) {
// If a match is found, redirect to the value from the KeyValueStore with a 302 HTTP response code
const response = {
statusCode: 302,
statusDescription: 'Found',
headers: {
location: {
value: redirectUri,
},
},
};
return response;
}
} catch (err) {
// If the URI is not found in the KeyValueStore, proceed with the original request
console.log(`${uri} | ${err}`);
}
return request;
}
注意"Save changes”。
有3种方式可以将数据放入KeyValueStore。

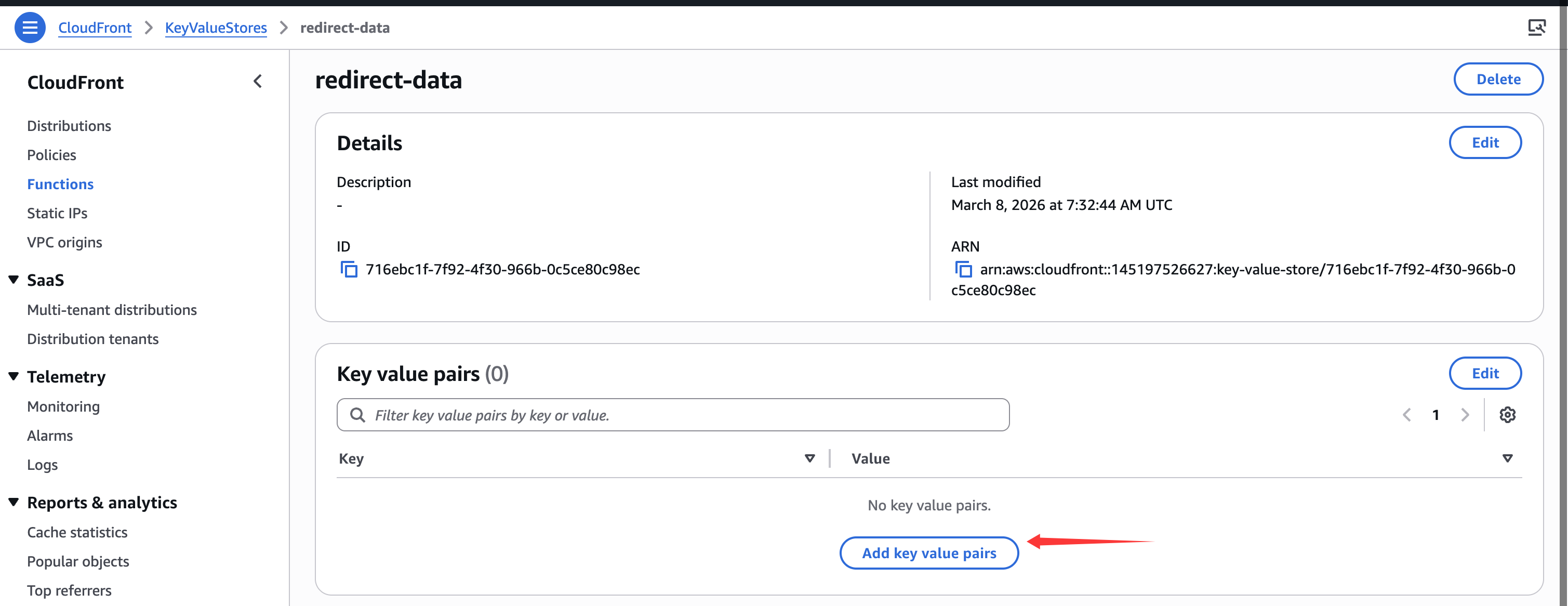

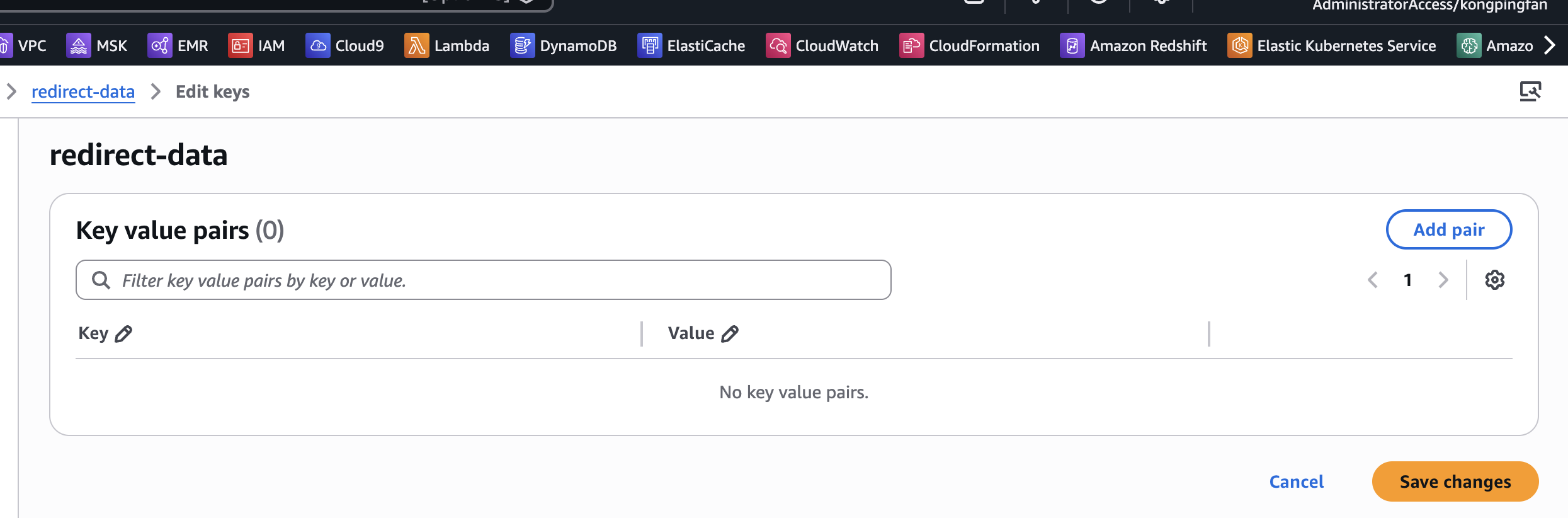

先通过控制台输入数据。首先,导航到KeyValueStore。看到一个添加键值对的按钮,如下所示:

按Add pair按钮:

使用这两个:
| 键 | 值 |
|---|---|
| /catalog/spices/ | https://aws.amazon.com/cloudfront/ |
| /catalog/tea/ | https://docs.aws.amazon.com/AmazonCloudFront/latest/DeveloperGuide/cloudfront-functions.html |
更新完成后:

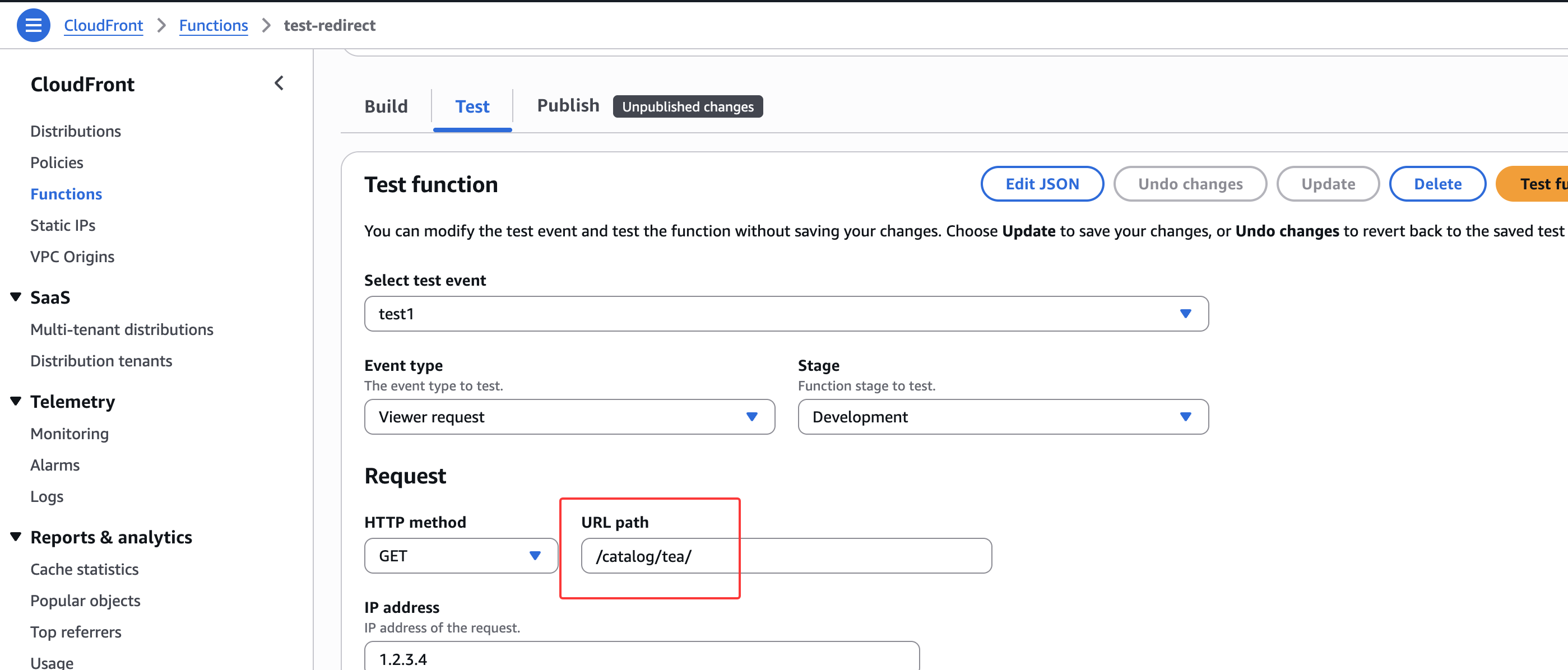

和上一节的步骤类似,进行测试:

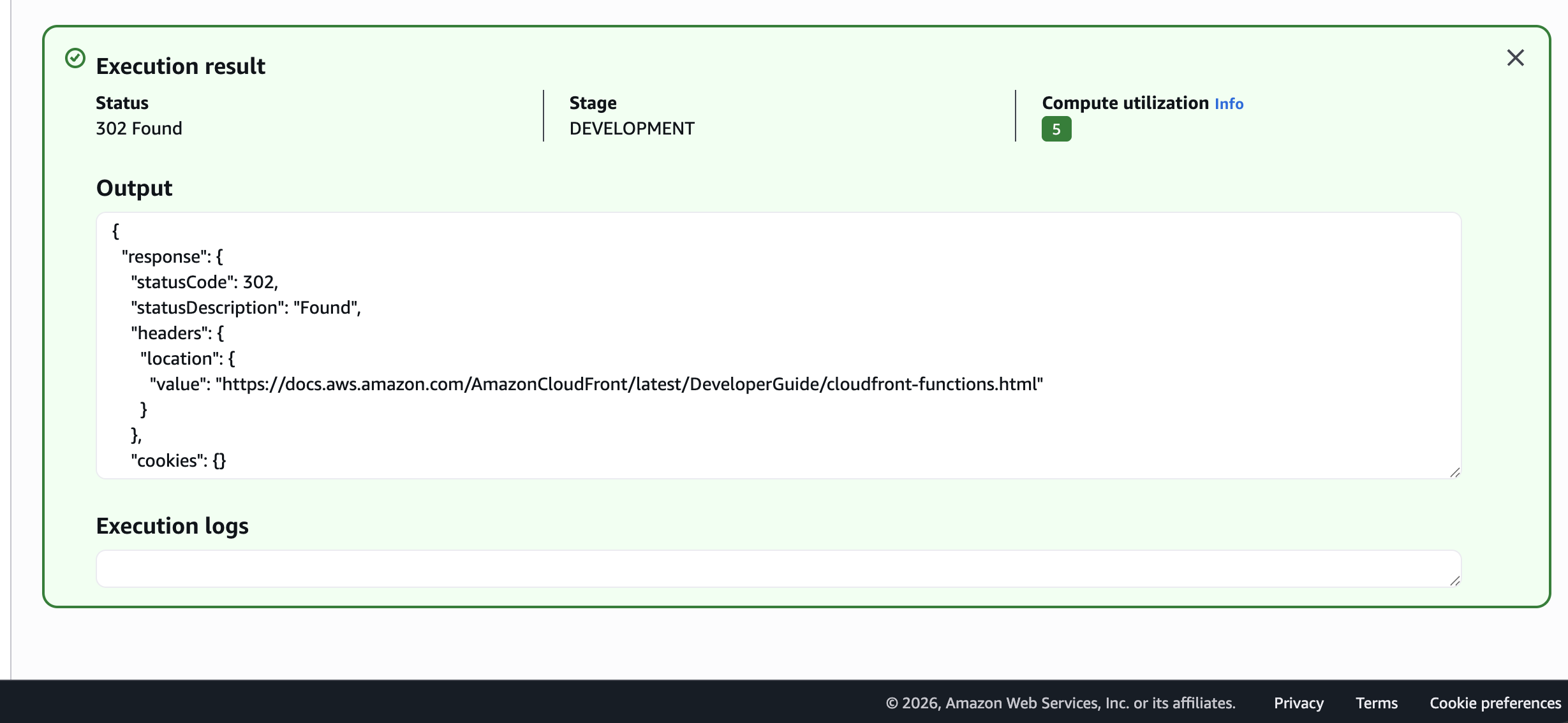

结果在下面显示:

使用CloudFront Distribution的URL测试,也是类似的效果(注意要先public)

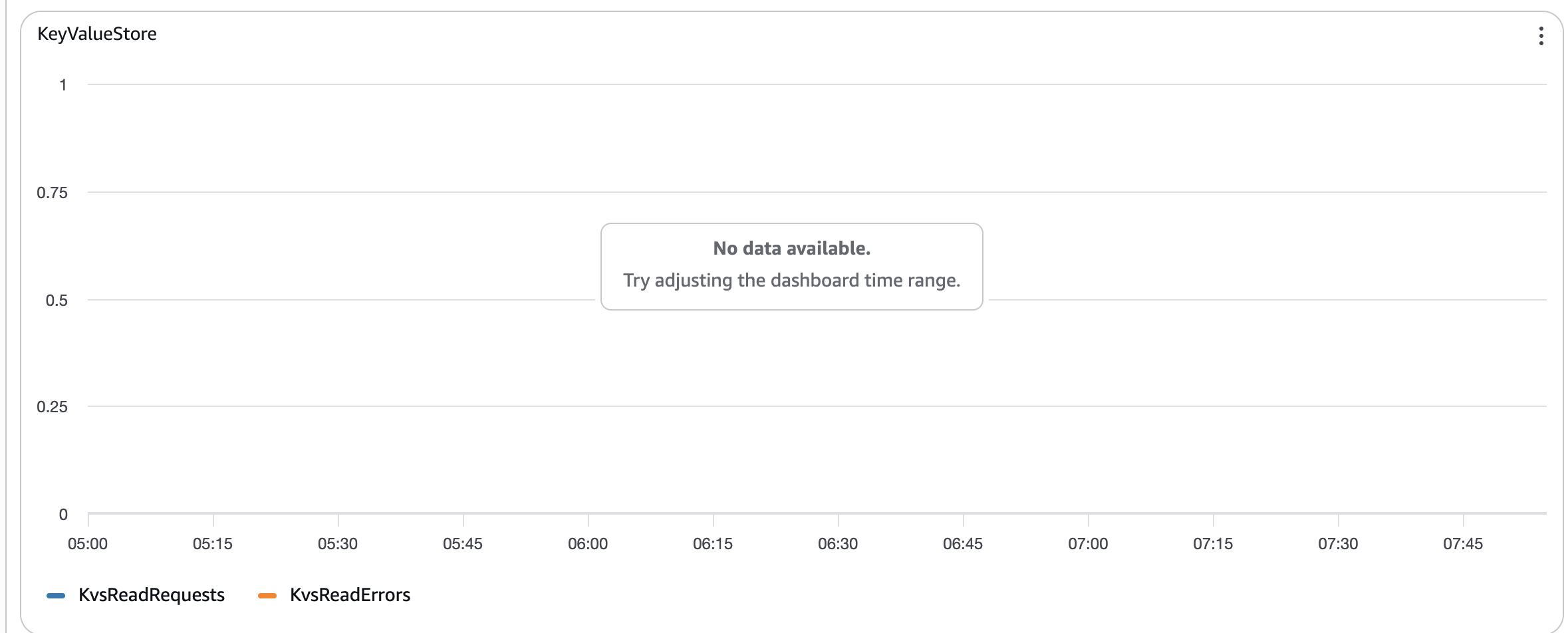

在Monitoring页面中,此时也能看到KVS相关的指标:
